The
SIG SG 551 is a shorter version of the SG 550 and differs in
that it has no bipod, and it can't be used to fire rifle
grenades nor can it mount a bayonet.There
is several versions of the 551 in existence, the ordinary SG
551, the SG 551 SWAT*, the SG 551 LB** and the
SG 551 that was made for the US market that came with a 16"
barrel. In all other aspects,
refer to the SG 550 page.
*The SG
551 SWAT differs from the ordinary SG 551 in that some
parts are made from corrosion resistant steel and some parts
have a corrosion resistant coatings to better whithstand
corrosive environments.

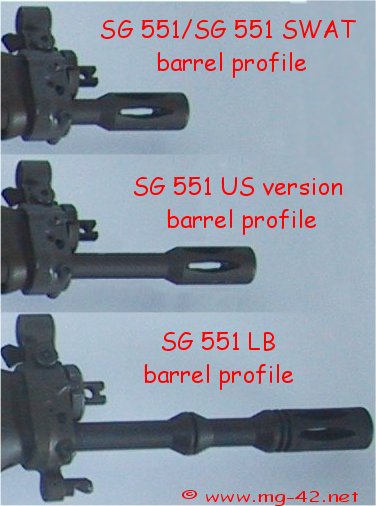

**The SG 551 LB
(Long Barrel) that has the same barrel length and profile as
the SG 550 from the gas block and forward. This version can of
course launch rifle grenades and mount bayonets.
Click the pic for
1024 width images
I

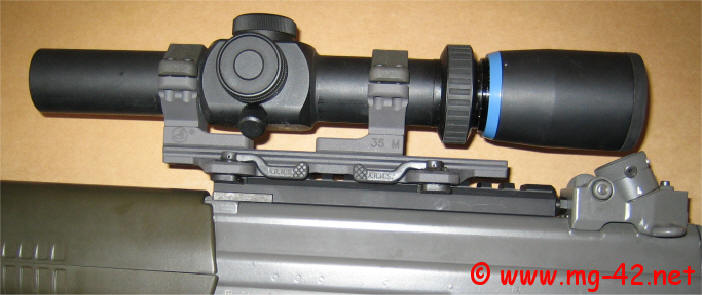

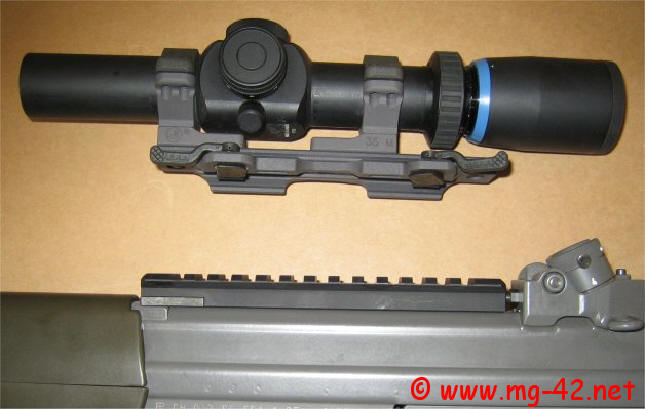

recently got a SIG picatinny rail
and an A.R.M.S # 35 QD mount to replace the SIG STANAG mount
seen above. The picatinny rail/A.R.M.S. mount is a better
solution IMO,
because it allows for a
wide variety of scopes to be used. The STANAG mount is best
suited for STANAG interface scopes (duh!), and scopes with a
set magnification due to eye relief issues. SIG also offer
varios other mount interfaces, see the Swiss Arms website for
more info
Technical specifications
SIG SG 551 |
Caliber |
5.56x45
(.223) |
Total
length |
833 mm
(32.8") |
Length
with butt folded |
607 mm
(23.9") |
Barrel
length |
363 mm
(14.3") |
Barrel
rifling SG 551-1 |
6
grooves rh twist 1:254mm (1:10") |
Barrel
rifling SG 551-2 |
6
grooves rh twist 1:178mm
(1:7") |
Weight
incl. empty magazine |
3,4 kgs
(7.49 lbs) |
Weight
empty 20 rd. magazine |
95 g
(3.35 oz) |
Weight
empty 30 rd. magazine |
110 g
(3.87 oz) |
Weight
loaded 20 rd. magazine |
340 g
(11.99 oz) |
Weight
loaded 30 rd. magazine |
475 g
(16.75 oz) |
Technical
specifications
SIG SG 551 LB |
Caliber |
5.56x45
(.223) |
Total
length |
924 mm (36.4") |
Length
with butt folded |
698
mm (27.5") |
Barrel
length |
454 mm (17.9") |
Barrel
rifling SG 551 LB-1 |
6
grooves rh twist 1:254mm (1:10") |
Barrel
rifling SG 551 LB-2 |
6
grooves rh twist 1:178mm
(1:7") |
Weight
incl. empty magazine |
3,6
kgs (7.94 lbs) |
Weight
empty 20 rd. magazine |
95 g
(3.35 oz) |
Weight
empty 30 rd. magazine |
110 g
(3.87 oz) |
Weight
loaded 20 rd. magazine |
340 g
(11.99 oz) |
Weight
loaded 30 rd. magazine |
475 g
(16.75 oz) |
|
