How to adjust the sights of your HK rifle

Sighting in.

G3/91 battle sight in.

Set the rear sight drum to pos. ”2” and test fire at a distance of 30 meters. The G3/91 has the same POI at 30 and 200 meters using NATO ammo. After firing a test group, calculate the mean point of impact and adjust accordingly.

Windage and elevation adjustment Hk 91/G3
Range 25 m 100 m 200 m 300 m 400 m
1/4 turn equals 1 cm 3,5 cm 7 cm 10 cm 15 cm

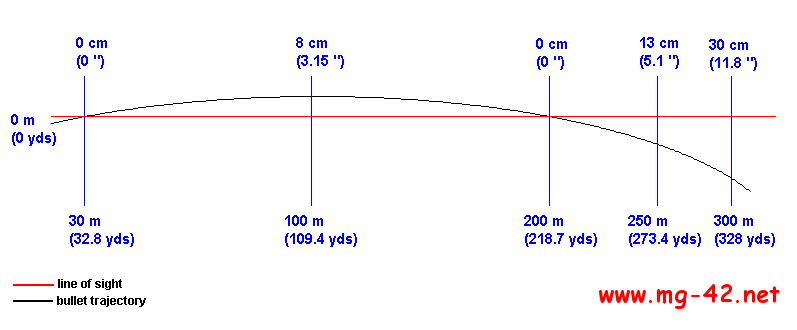

Bullet trajectory using NATO ammo in a G3/HK 91 sighted in at 30 m, sight drum at 200 m (2) setting.



94/MP 5

Set the rear sight drum to any desired aperture, and test fire at a distance of 25 meters. The 94/MP5 has the same POI at 25 and 75 meters using NATO ammo. After firing a test group, calculate the mean point of impact and adjust accordingly.

Windage and elevation adjustment Hk 94/MP5
Range 25 m
1/4 turn equals 1.4 cm

Sight adjustments.

To adjust the sights of HK’s 9x series,G3/33 and MP5 models you will need the following:

-HK sight adjustment tool or a forceps/needle nose pliers and a #2 Philips head screwdriver.



Windage adjustment:



Loosen the clamping screw and turn the adjusting screw the desired amount of ¼ turns.

Turning the adjusting screw clockwise moves the POI left, counterclockwise moves the POI right.







Elevation adjustment:

-HK tool

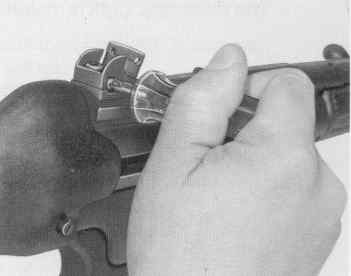

Insert the elevation adjustment tool into the rear sight cylinder in such a manner that the wedges of the tool engage the two splines in the cylinder that contains the catch bolts.

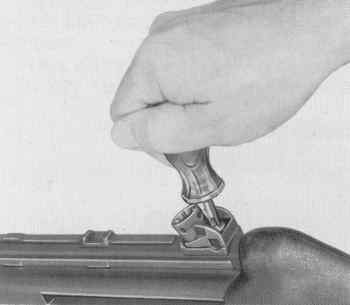

Now press the Philips-head screwdriver into the adjustment tool and hold firmly.

You can now rotate the rear sight cylinder the desired amount of ¼ turns.



-Pliers/forceps

Use the Needle nose pliers/forceps to press in the catch bolts.

You can now rotate the rear sight cylinder the desired amount of ¼ turns.





Make sure the catch bolts reengage the splines after the adjustment is done.

Then turn the sight drum to the desired aperture.
